COMPARSION OF KH(A) S VERSION

DATE : 2001/3/14
VERSION : 1.20

NO.

DESCRIPTION

SPECIFICATION

REMARKS

1

CE MODEL

SGCC

2

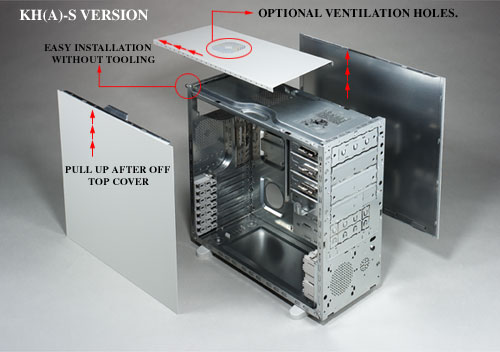

TOP COVER VENTLATION HOLES
(8x8 CM FAN)

FOR 80x80 FAN

OPTION(ORDER MUST LIST IF NEED)

3

MIDDLE PLATE

SGCC

W/O MIDDLE BAR

4

TRANSPERENT STICKER

ASSEMBLY ILLUSTRATION

STICK ON MIDDLE PLATE

5

CARD GUIDE(FAN HOLDER)

PLASTIC

FOR FRONT WALL;FAN BRACKET

6

FAN BRACKET

SGCC

ASSEMBLY ON FRONT WALL

7

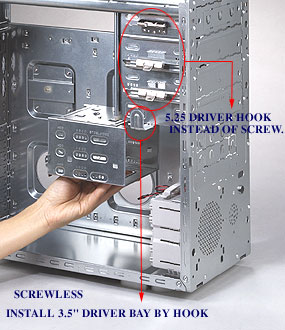

3.5" DRIVER BAY HOOK

SGCC

FOR 3.5" DRIVER BAY ASSEMBLY

8

THUMB SCREW

#6-32 x 6.5mm

FOR TOP COVER FASTEN

9

BEEPER

1.5V; D=12mm, 8.5mm

REPLACE SPEAKER

10

CASE LOCK

SGCC

IN ACCESSORY BOX

11

I/O SHIELDING (VENUS)

SUS301

CLIP ON K/B I/O BRACKET

12

SCREWLESS STAND OFF

6.35x16.2x8.62mm

IN ACCESSORY BOX

13

FOOT (ROTATABLE)

PLASTIC

PUT IN THE CASE ( PACKING)

14

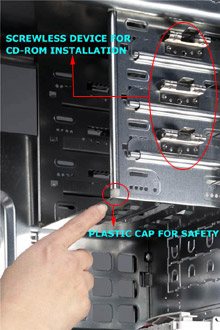

SCREWLESS DEVICE FOR
CD-ROM INSTALLATION

SECC+SUS301; 6PCS

CLIP ON 5.25" DRIVER BAY

15

SLOT I/O SHIELDING
(FOR CE MODEL)

SUS 301 ; 7PCS

ASSEMBLY ON K/B/ I/O BRACKET

16

L BRACKET

SGCC ; 7PCS

ASSEMBLY ON K/B/ I/O BRACKET

17

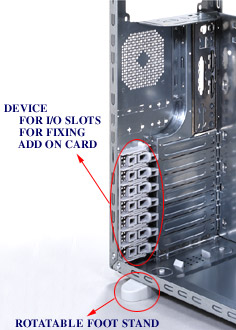

SCREWLESS PLASTIC DEVICE
FOR I/O SLOTS

ABS

FOR FIXING ADD ON CARD

18

SECOND FAN

80x80 mm FAN x 3

EXTRA FAN QUANTITY

19

HDD BRACKET

SGCC T=0.8mm; 1PCS

IN ACCESSORY BOX

20

ACCESSORY BOX

B FLOW CARTON

FOR ACCESSORY PARTS(WHITE)

21

5.25" DRIVER BAY CAP

PLASTIC x 2PCS

FOR SAFETY

22

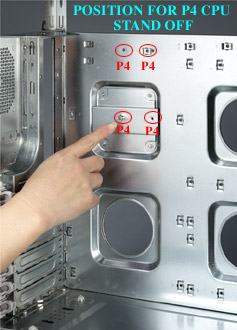

P4 CPU BRACKET

SGCC

FOR P4 CPU STAND OFF

NOTE:

1.	USE HA BEZEL WILL ATTACH 3.5" TRANSLATE BRACKET.
2.	AT I/O PLATE IS AN OPTION PARTS.(ORDER MUST LIST IF NEED)
3.	THE HA,4HA BEZEL WITH SIDE BLOCK CAN'T BE FOR KHA
4.	THE PACKING METHOD IS THE SAME AS NOW.
