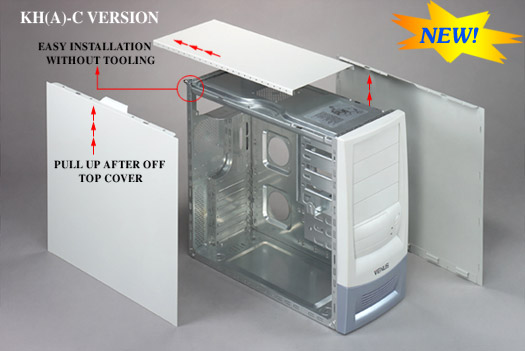

| KH(A)- C Version | |||
|
|
|||
-c03.jpg) |
-c02.jpg) |
 |
| MODIFICATION FOR THE NEW KH(A)-C STRUCTRE : | |
|
1. |
AT THE TOP CASE SKULL, THE 2 SUPPORTING METAL BARS TRANSFORMS TO BE ONE-PIECE METAL PLATE, EXACTLY ALIKE "S" VERSION. |
|
2.
|

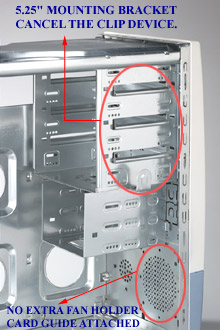

5-1/4" BRACKET, CANCEL THE HDD CLIP DEVICE, BUT CHANGE TO FASTEN WITH THE CONVENTIONAL WAY OF SCREWING. |
|
3.
|

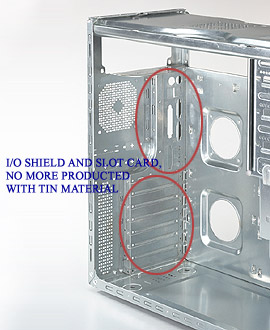

I/O SHIELD, NO MORE PRODUCED WITH TIN MATERIAL, BUT REPLACED THE METAL PLATE EASILY BREAKING THROUGH. |
|
4.
|
SLOT CARD ALTERED ALSO SAME TO THE I/O SHIELD. |
|
5.
|
AT FRONT WALL, NO EXTRA FAN HOLDER/CARD GUIDE ATTACHED. |
|
6.
|
EXPORT
CARTON, SHIFTINGS TO BE REGUARL BROWN BOX; CASE OUTLOOK PRINTING ON; AND,
POLYFOAM PACKAGING. NEW CARTON MEASUREMENT : 1.93 CUFT PER CASE |
|
7.
|
AVAILABLE FOR BOTH CE AND NON-CE SPEC. |
|
8.
|
SPARE BAG CONSISTS OF BRASS STUD & SCREWS, SAME AS 4H(A). |
| REMARKS : | |
|
A. ADJUSTABLE BASE
FEET |
|
| CAN BE OPTIONAL FOR YOUR CHOOSE TO EXCHANGE, BUT EXTRA COST DEMANDED TO CHARGE. | |
|
COMPARSION OF KH(A) C VERSION |
DATE
: 2001/6/28 |
||||||||||||||
|
NO. |
DESCRIPTION |
SPECIFICATION |
REMARKS |
||||||||||||
|
1 |
NORMAL MODEL |
SGCC |
CE FOR OPTION |
||||||||||||
|
2 |
MIDDLE BAR |
SGCC |
W/ MIDDLE TOP PLATE |
||||||||||||
|
3 |
3.5" DRIVER BAY HOOK |
SGCC |
FOR 3.5" DRIVER BAY ASSEMBLY |
||||||||||||
|
4 |
THUMB SCREW x 2 PCS |
#6-32 x 6.5mm |
FOR TOP COVER FASTEN |
||||||||||||
|
5 |
BEEPER |
1.5V; D=12mm, 8.5mm |
REPLACE SPEAKER |
||||||||||||
|
6 |
CASE LOCK |
SGCC |
IN ACCESSORY BOX |
||||||||||||
|
7 |
I/O SHIELD (VENUS) |
SGCC |
SCREW ON BACKBONE |
||||||||||||
|
8 |
ADD-ON CARD SHIELD |
SGCC |
SCREW ON BACKBONE |
||||||||||||
|
9 |
SCREWLESS STAND OFF |
6.35x16.2x8.62mm |
IN ACCESSORY BOX |
||||||||||||
|
10 |
FOOT STAND |
PLASTIC;D=27mm;H=5.5mm |
CLIP ON BOTTOM PLATE |
||||||||||||
|
11 |
SECOND FAN SPACE |
80x80 mm FAN x 3 |
EXTRA FAN QUANTITY |
||||||||||||
|
12 |
HDD BRACKET |
SGCC T=0.6mm; 1PCS |
IN ACCESSORY BOX |
||||||||||||
|
13 |
ACCESSORY BOX |
B FLOW CARTON |
FOR ACCESSORY PARTS(WHITE) |
||||||||||||
|
14 |
5.25" DRIVER BAY CAP |
PLASTIC x 2PCS |
FOR SAFETY |
||||||||||||
|
15 |
P4 CPU BRACKET |
SGCC |
FOR P4 CPU STAND OFF |
||||||||||||
|
NOTE:
|
|||||||||||||||
|
MODEL
|
JNC-KHxx(A)
|
|
|
TYPE
|
EXTRA
MIDDLE ATX TOWER CASE
|
|
|
DIMENSION
(WxLxH)mm |
200*452*412
|
|
|
DRIVE
SPACE
|
5.25" |
4
|
| 3.5"FDD |
2
|
|
| 3.5"HDD |
1
|
|
| USED M/B |
A/B/C/D/M/P4
|
|
| SLOT |
7
|
|
| TYPE OF POWER |
AT
/ ATX / ATX PSIII / AT PSIII
|
|
| EXTRA CASE FAN |
3
FOR S/E VERSION, 2 FOR C VERSION
|
|
|
PACKING
|
MT(W/D/H) |
232*466*505
|
| CAPACITY |
1.93'
|
|
| NW(KG) |
9.54/9.38/8.73
|
|
| GW(KG) |
10.58/10.42/9.77
|
|
|
SARRY
Q'TY |
20' CTR |
540pcs
|
| 40' CTR |
1110pcs
|
|
| 40'HQ CTR |
1240pcs
|
|
|
CASE
|
 |
|
|
|
|
| 1. | A:ATX 810;812 chip set M/B; B:BABY AT M/B; C:MICRO ATX M/B; D:ATX M/B; M:MINI ATX M/B. |
| 2. | AT:AT POWER; ATX:ATX POWER; AT P.S.3:AT P.S.3 POWER; ATX P.S.3:ATX P.S.3 POWER. |
|
|||||||||||||||||||||||||
